Fenix PD35R ACE Rechargeable Flashlight
Fenix PD35R ACE Rechargeable Flashlight

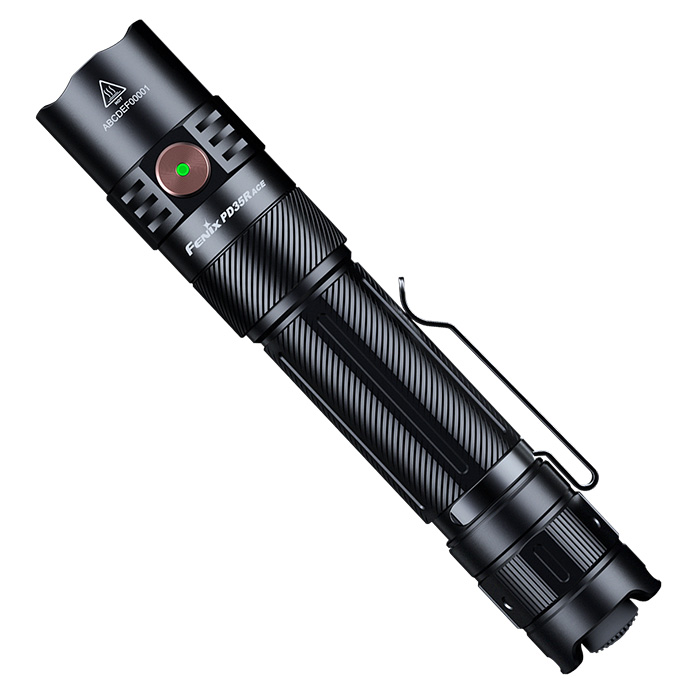

The Fenix PD35R ACE is a compact, USB-C rechargeable flashlight delivering up to 2,000 lumens and a beam distance of 1,247 feet (380 meters). As part of Fenix’s Advanced Command Edition (ACE) series, it features an innovative SET mode with three selectable program options, each with its own tail switch activation sequence, so you can tailor the light’s behavior to your needs. You can even disable Strobe mode entirely if you prefer a simpler interface.

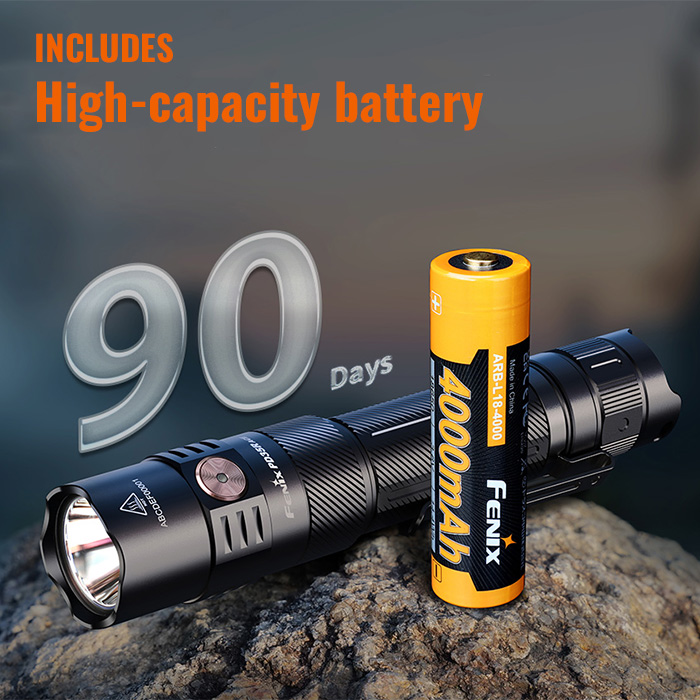

A tactical tail switch handles on/off and momentary activation, while a separate side switch controls brightness, giving you fast, intuitive two-switch operation. The PD35R ACE has a hidden, protected USB-C port tucked beneath the collar for convenient charging, and it comes with a high capacity 4,000 mAh rechargeable battery, delivering runtimes from under 3 hours on Turbo up to 30 days on Eco mode. Built tough with an anti-roll, anti-slip body design, it’s rated IP68 waterproof and dustproof and impact resistant to 1 meter, making it a reliable choice for law enforcement, outdoor use, and everyday carry. It comes complete with a nylon belt holster……$94.95
- Output: 2000, 1000, 350, 50 or 1 lumen
- Battery Type: Fenix 18650 rechargeable (1), included
- Run Time: 2.8 to 720 hours
- Beam Range: 1,246 feet (380 meters)
- Dimensions: 5.5″ long x 1″ bezel diameter x 0.9″ barrel diameter
- What’s Included: Fenix PD35R Ace, rechargeable battery, nylon holster, wrist lanyard, USB-C to USB-A cable, spare O-ring
$94.95
Description

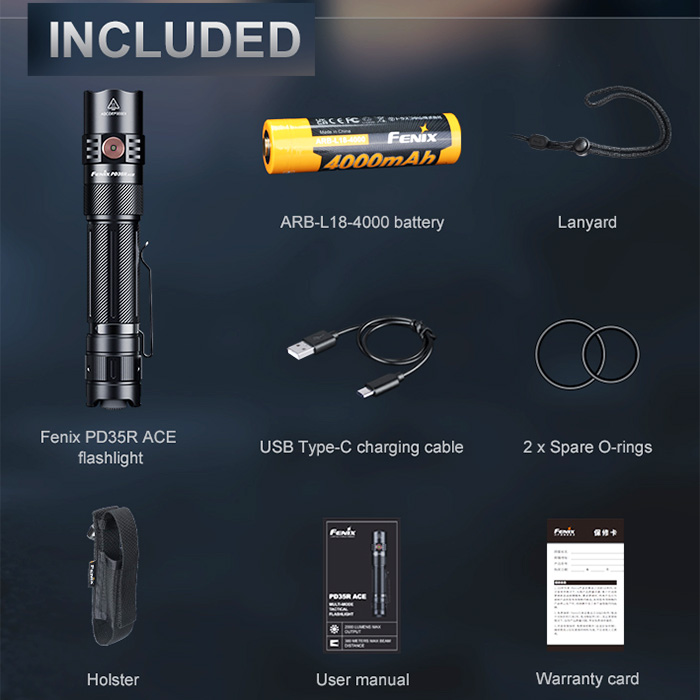

What’s included: Fenix PD35R Ace, rechargeable battery, nylon holster, wrist lanyard, USB-C to USB-A cable, spare O-ring
Features of Fenix PD35R Ace Multi-Mode Rechargeable Flashlight:
• maximum beam range of 1,246 feet (380 meters)
• waterproof to IP68 standard
• powered by a Fenix 18650 Li-ion rechargeable battery, ARB-L18-4000
â–¹ compatible with two CR123A non-rechargeable batteries with reduced performance
â–¹ refer to manufacturer’s instructions for warnings regarding battery usage
• USB-C charging

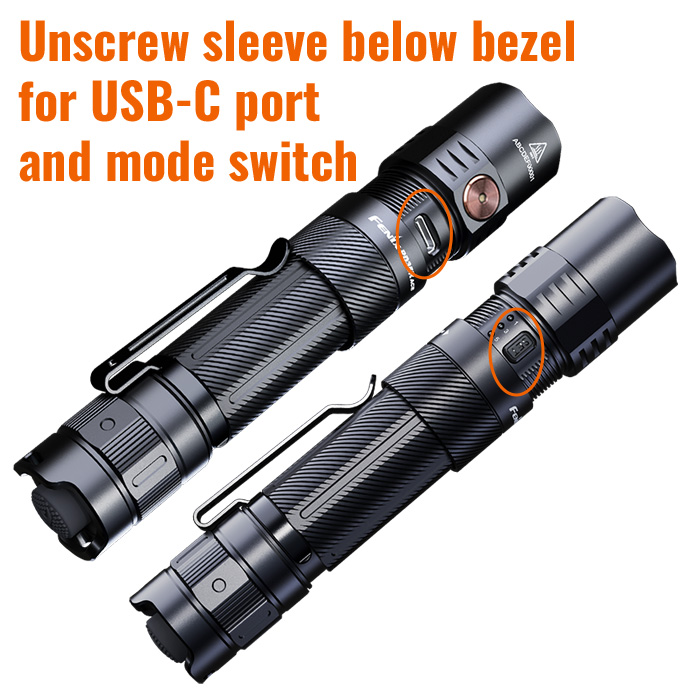

â–¹ unscrew sleeve below bezel to reveal USB-C charging port
â–¹ attach included cable to flashlight for charging
â–¹ charging indicator changes from red to green when charging is complete
• brightness, runtime and beam range specs
☼ Turbo – 2,000 lumens (33,872 candela), 2.8 hours, 380 meters
☼ High – 1,000 lumens, 3.3 hours, 252 meters
☼ Med – 350 lumens, 7.2 hours, 147 meters
☼ Low – 50 lumens, 45.4 hours, 57 meters
☼ Eco – 1 lumen, 720 hours, 8 meters
☼ Strobe – 2000 lumens
☼ SOS – 50 lumens
• battery level indicator on side switch glows for 3 seconds when light is activated
• pushbutton tail switch and side switch
â–¹ press tail switch for on or off
â–¹ use side switch to change brightness level (depending on program mode)

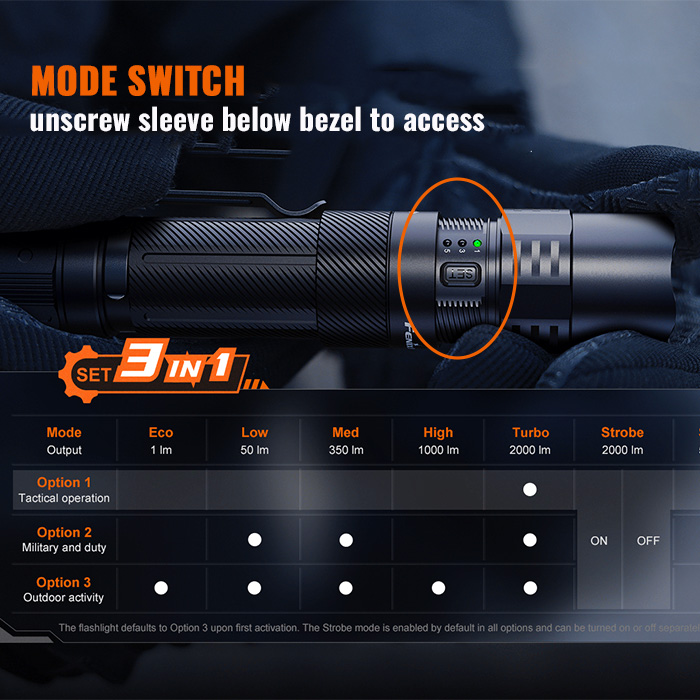

• 3 program modes
â–¹ unscrew sleeve below bezel for mode set switch, press switch to change mode
â–¹ Option 1: Turbo
â–¹ Option 2: Low, medium, turbo
â–¹ Option 3: Eco, low, medium, high, turbo, SOS
• Strobe can be enabled or disabled
â–¹ press and hold mode set switch for 1.2 seconds to enable or disable
â–¹ flashlight will blink twice to confirm selection
• Intelligent Overheat Protection
▹ brightness automatically steps down a few lumens to prevent overheating when internal temperature reaches 60°C
Frequently Asked Questions – Fenix PD35R ACE Flashlight
Why Buy the Fenix PD35R ACE from BrightGuy?
Every PD35R ACE sold through BrightGuy is genuine and fully backed by Fenix’s warranty. BrightGuy is a family-run Ohio business with a long track record serving law enforcement, outdoor enthusiasts, and everyday customers.
How do I change SET mode options?
Loosen the collar below the side switch to reveal the SET switch. With the light on, click it to cycle through Option 1 (1 output), Option 2 (3 outputs), and Option 3 (5 outputs, the default).
How do I charge it?
Unscrew the sleeve below the bezel to access the hidden USB-C port, then connect the included cable. A charging indicator turns from red to green when charging is complete.
Is the PD35R ACE waterproof?
Yes, it’s IP68 rated for dust and water resistance, and it’s impact resistant to 1 meter.
Specifications
| Battery#: | Fenix 18650 rechargeable, ARB-L18-4000, 3.6V, 4000mAh, 14.4Wh; compatible with Fenix 18650 ARB-L18 rechargeable battery; also compatible with two CR123A non-rechargeable batteries |
| Dimensions: | 5.5″ long x 1″ bezel diameter x 0.9″ barrel diameter |
| Lamp Type: | Luminus SFT40 white LED |
| Light Output: | 2000, 1000, 350, 50 or 1 lumen |
| Weight w/batteries: | 5.1 ounces |
| Run Time: | 2.8 to 720 hours |
| Charging Time: | 3 to 6 hours |
| Focus Type: | Fixed |
| On/Off: | Pushbutton, Tail-Cap |
| Material: | Anodized aluminum |
| Origin: | Made in China |
| Warranty: | Limited 5 year warranty through Fenix |
Part Numbers and UPC Codes
P/N: PD35R ACE; UPC: 6942870312156; PD35R ACE, 2000 lumens
