The Fenix HM53R is a 1,200-lumen rechargeable headlamp that slides out of its mount to double as a compact EDC flashlight. With a 158-meter beam, a dedicated red-light mode, and USB-C charging, the HM53R is built for industrial inspectors, maintenance crews, and outdoor users who need one reliable light that adapts on the fly.
Why the Fenix HM53R Stands Out
The HM53R pushes a turbo output of 1,200 lumens and reaches 158 meters down range – enough punch for warehouse inspections, attic and crawlspace work, search-and-rescue, mechanical diagnostics, and trail use after dark.

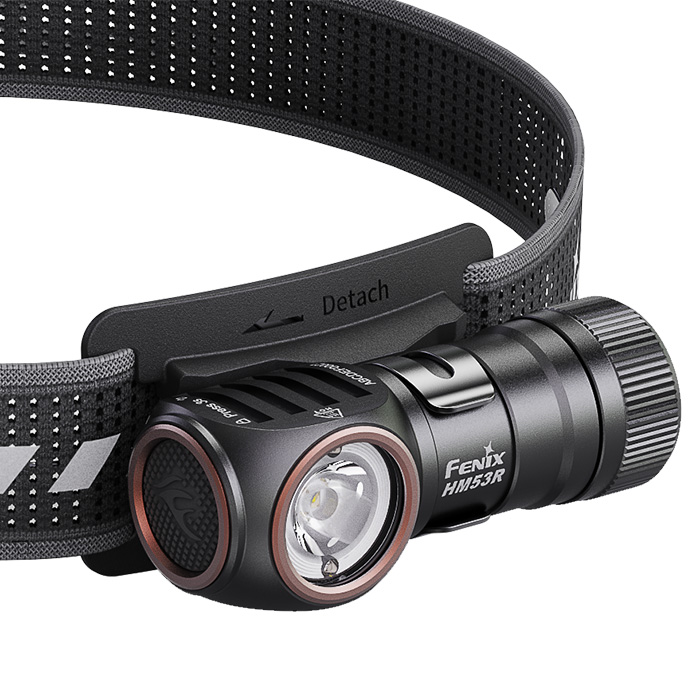

Headlamp and EDC flashlight in one

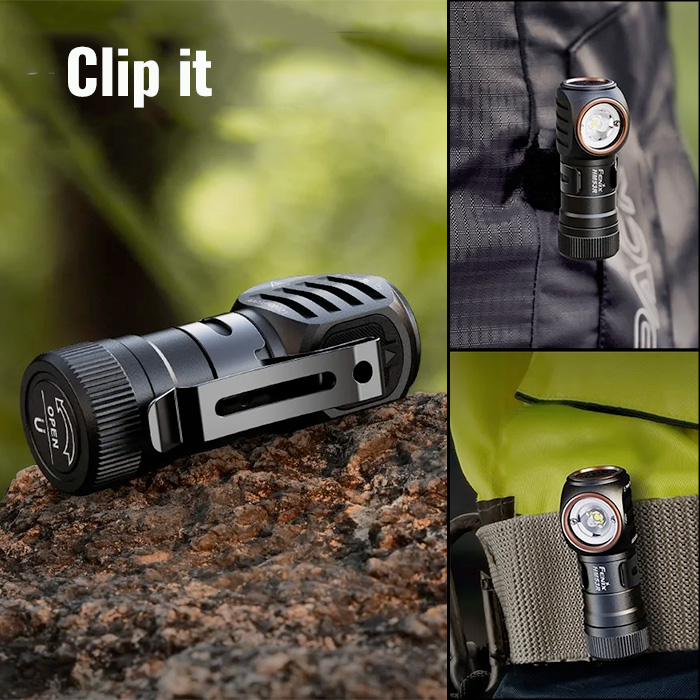

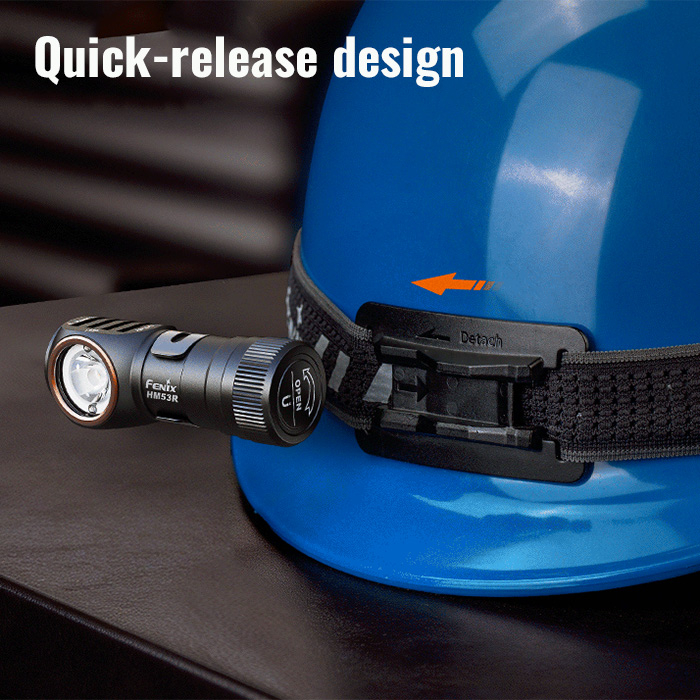

Fenix’s patented quick-release mount lets you slide the HM53R out of the headband in seconds and pocket it as an EDC handheld. One light replaces two, saving space in your tool bag, glove box, or go-kit.
Red light mode to preserve night vision
A dedicated red LED keeps your eyes adapted to the dark – ideal for hunting, astronomy, evening navigation, or sharing tight workspaces without blinding teammates.

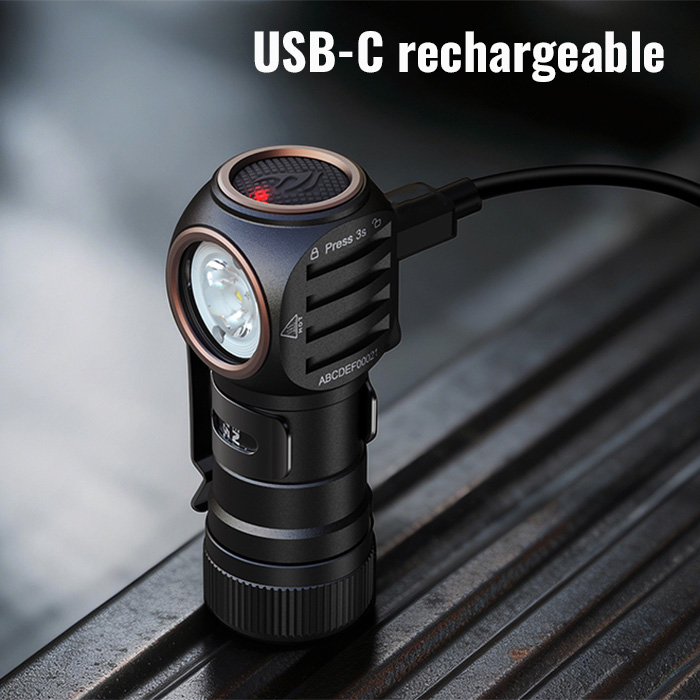

USB-C rechargeable with multi-battery flexibility
The integrated USB-C port charges the included high-capacity 18350 cell directly – no cradle, no proprietary cable. The HM53R also accepts 16340 and CR123A batteries, so you can keep working when shore power isn’t an option.
Oversized switch for gloved-hands use
The large tactile button is easy to cycle with work gloves, winter mittens, or wet hands, so you’re never fumbling for the right mode mid-task.
Built for Demanding Environments
The HM53R is engineered for industrial inspection, electrical and HVAC maintenance, mechanical work, search and rescue, caving, camping, and any environment where lighting needs change fast. Rugged construction and dependable Fenix build quality stand up to daily abuse in the field.
Why buy from BrightGuy?
BrightGuy is an authorized U.S. Fenix dealer with 20+ years of flashlight expertise. Every Fenix light is 100% authentic, ships fast from our U.S. warehouse, and is covered by Fenix’s full factory warranty……$69.95
- Output: 1200, 350, 130, 30 or 5 lm white; 30 or 3 lm red
- Battery Type: Fenix 18350 rechargeable (1), included; compatible with 16340 rechargeable and CR123A non-rechargeable
- Run Time: 2.5 to 135 hours
- Beam Range: 518 feet (158 meters)
- Dimensions: 2.80” × 1.46” × 1.42”

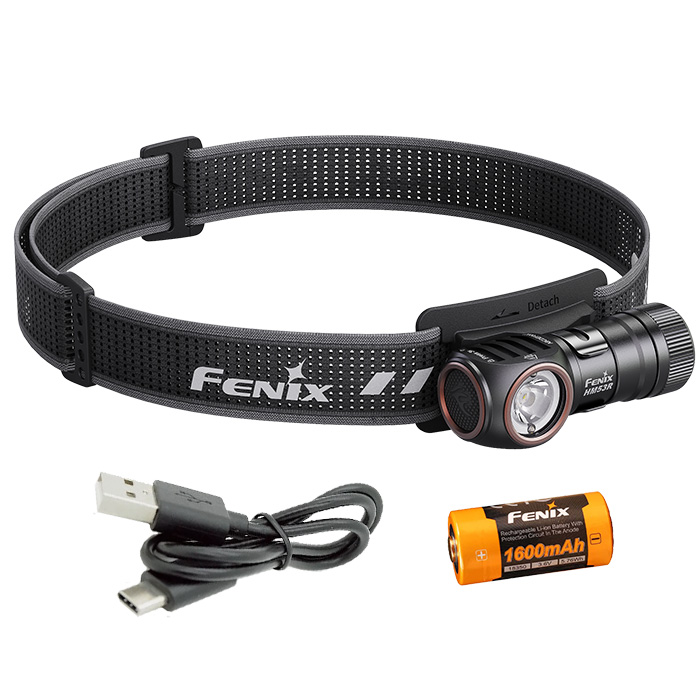

- What’s Included: Fenix HM53R with adjustable head strap, ARB-L18-1600 rechargeable battery, pocket clip, spare O-ring, USB-C to USB-A charging cable
$69.95
Description

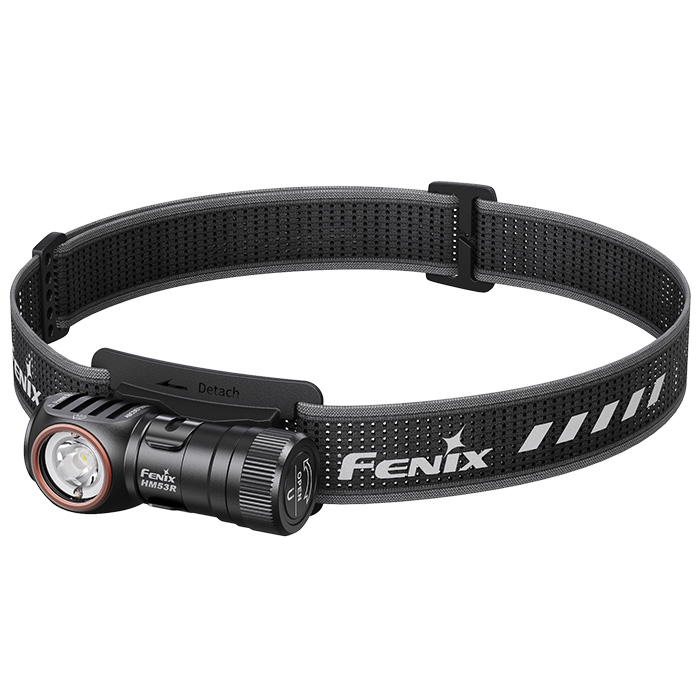

What’s included: Fenix HM53R with adjustable head strap, ARB-L18-1600 rechargeable battery, pocket clip, spare O-ring, USB-C to USB-A charging cable
Features of Fenix HM53R Lightweight Rechargeable Headlamp and Right Angle Light:
• USB-C rechargeable headlamp and compact pocket EDC flashlight in 1
â–¹ slide light from patented headlamp bracket for use as a flashlight
• white and red output modes
• durable metal with Type HAIII hard anodized finish
• magnetic base
• waterproof to IP68 standard (not dive rated)
• maximum beam range of 518 feet (158 meters)
• brightness, runtime and beam range specs
☼ Turbo – 1820 lumens, 6300 candela, 2.5 hours, 158 meters
☼ High – 350 lumens, 1754 candela, 5.5 hours, 83 meters
☼ Med – 130 lumens, 660 candela, 11.85 hours, 51 meters
☼ Low – 30 lumens, 148 candela, 51.2 hours, 24 meters
☼ Eco – 5 lumens, 28 candela, 135 hours, 11 meters
☼ Red High – 30 lumens, 15 hours, 11.5 meters
☼ Red Low – 3 lumens, 70 hours, 4 meters
☼ Red Flash – 3 lumens
• powered by one Fenix 18350 rechargeable battery
â–¹ also compatible with 16340 rechargeable and CR123A non-rechargeable batteries
â–¹ refer to manufacturer instructions for warnings regarding battery usage and compatibility
• USB-C charging
â–¹ attach included charging cable to light for charging
â–¹ charging indicator changes from red to green when charging is complete
• boot-up battery level indicator glows for 3 seconds when light is activated

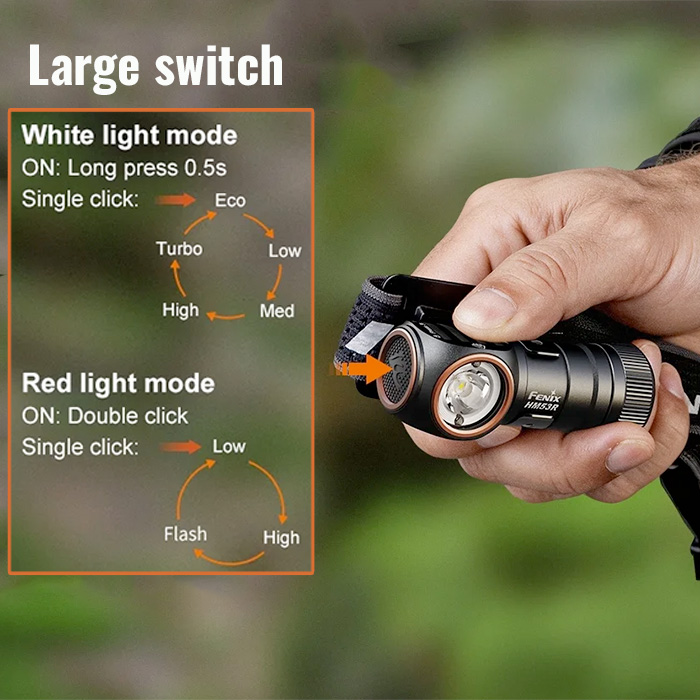

• pushbutton switch
â–¹ press and hold for 0.5 seconds for on or off
â–¹ from on, press again to change brightness
â–¹ press raised portion of switch to select spot, flood or red
â–¹ always turns on in last white output level used
• direct to red
â–¹ from off, quickly double switch
• lockout mode prevents normal switch operation; useful for storage or transport
â–¹ from off, press and hold switch for 3 seconds
â–¹ repeat to unlock
• Intelligent Overheat Protection
▹ brightness automatically drops down a few lumens when internal temperature reaches 55°C
Specifications
| Battery#: | Fenix 18350 ARB-L18-1600, 3.6V, 1600mAh (1); compatible with 16340 rechargeable or CR123A non-rechargeable |
| Dimensions: | 2.80” × 1.46” × 1.42” |
| Lamp Type: | Luminus SST-25 cool white LED and two OSRAM-2835 red LEDs with a lifespan of 50,000 hrs |
| Light Output: | 1200, 350, 130, 30 or 5 lm white; 30 or 3 lm red |
| Weight w/batteries: | 3.6 ounces |
| Run Time: | 2.5 to 135 hours |
| Charging Time: | 2.5 hours |
| Focus Type: | Fixed |
| On/Off: | Pushbutton |
| Material: | Metal |
| Origin: | Made in China |
| Warranty: | Limited 5 year warranty through Fenixlight |
Product Video
Part Numbers and UPC Codes
P/N: HM53R; UPC: 6942870314280; HM53R Headlamp, 1200 lumens
