Fenix HM61R V3 Headlamp and Right Angle Light
Fenix HM61R V3 Headlamp and Right Angle Light

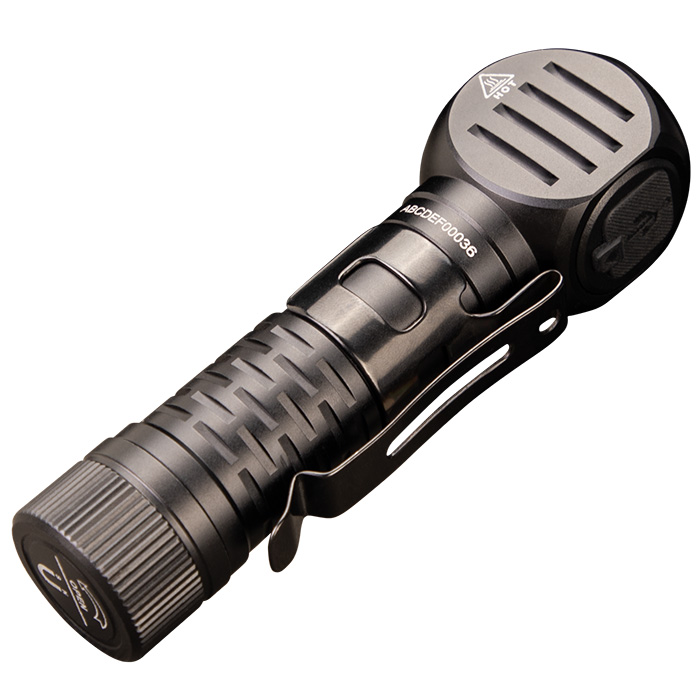

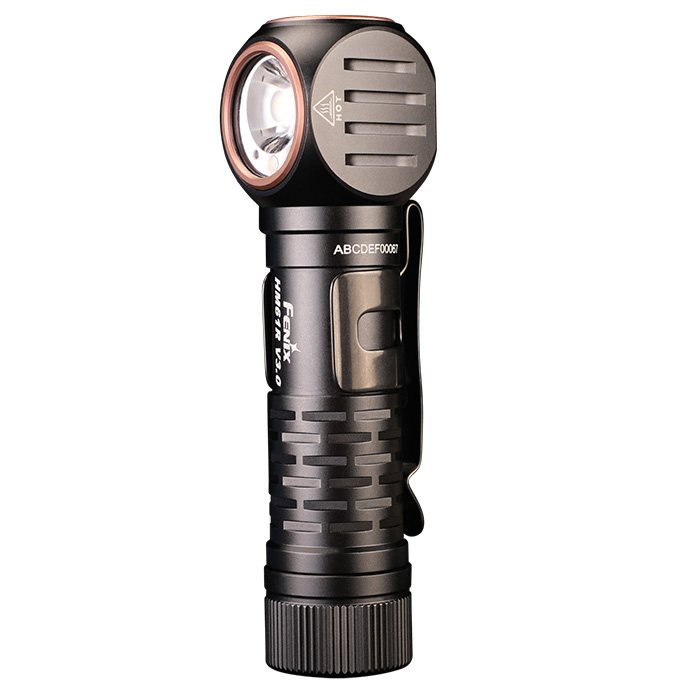

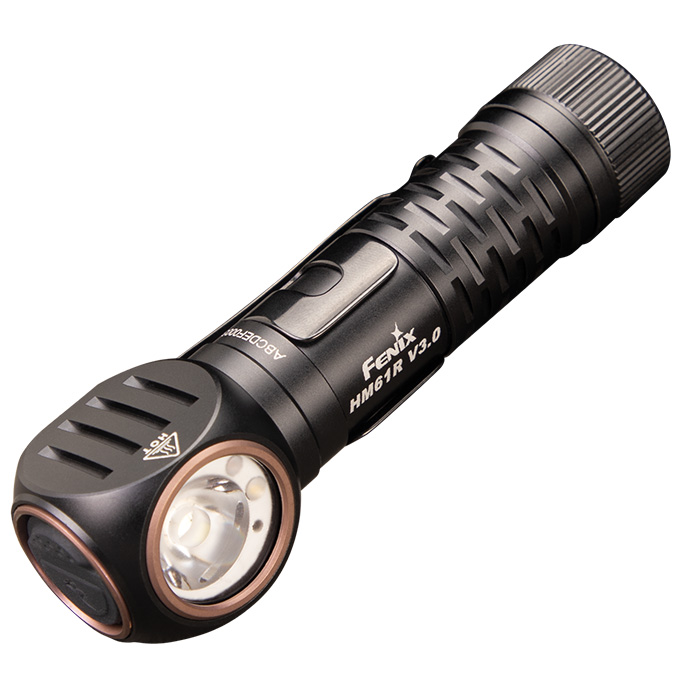

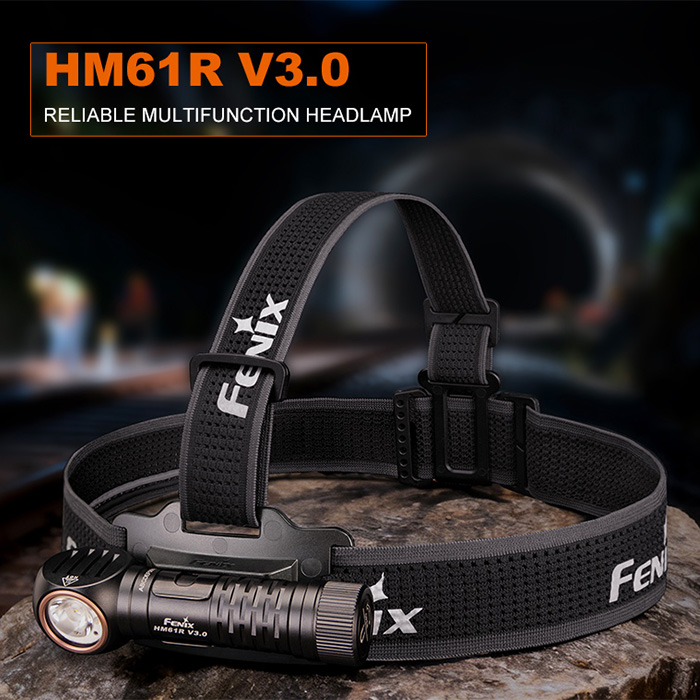

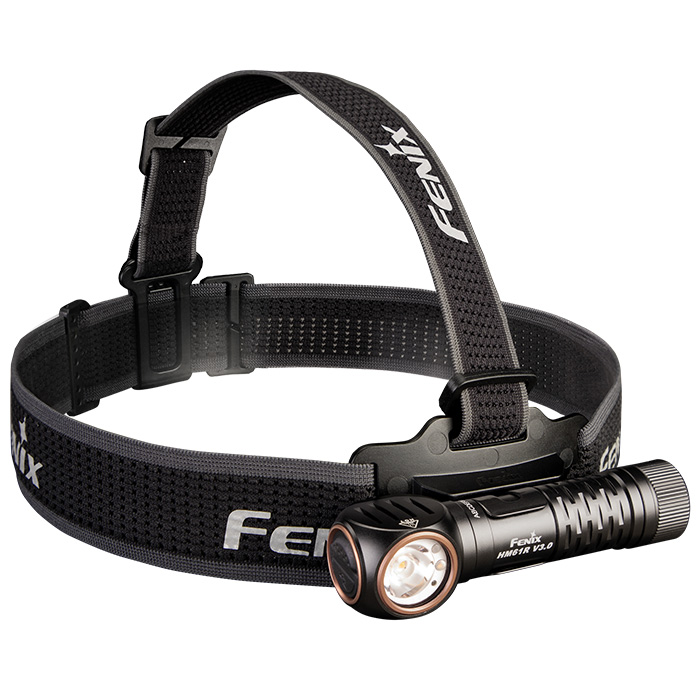

The Fenix HM61R V3.0 is a versatile, multifunction headlamp engineered for work, patrol, trekking, and everyday outdoor use. Delivering up to 1,800 lumens and a maximum beam distance of 195 meters (639 feet), it combines a powerful spotlight, a wide high-CRI floodlight, and a dedicated red light into one compact unit – giving you long-range visibility and close-up precision without switching tools. A standout feature sets the HM61R V3.0 apart: it slides right out of its patented headband bracket to become a compact, handheld right-angle flashlight, instantly adapting to however you need to work.
Powered by a high-capacity 18650 battery that recharges via an inner-waterproofed USB-C port, the HM61R V3.0 also features a magnetic base and included body clip for hands-free mounting to metal surfaces, gear, or a jacket. Its A6061-T6 aluminum body with Type HAIII hard-anodized finish is built to withstand tough job site and outdoor conditions, backed by an IP68 waterproof rating and 2-meter drop resistance.
Key Features:
Spot Turbo – Delivers a powerful 195-meter beam, ideal for long-range scanning and search tasks.
Flood Modes for Wide-Area Lighting – Up to 300 hour runtime for extended close-range work.
Dedicated Red Light Modes -Preserve night vision during low-light use.

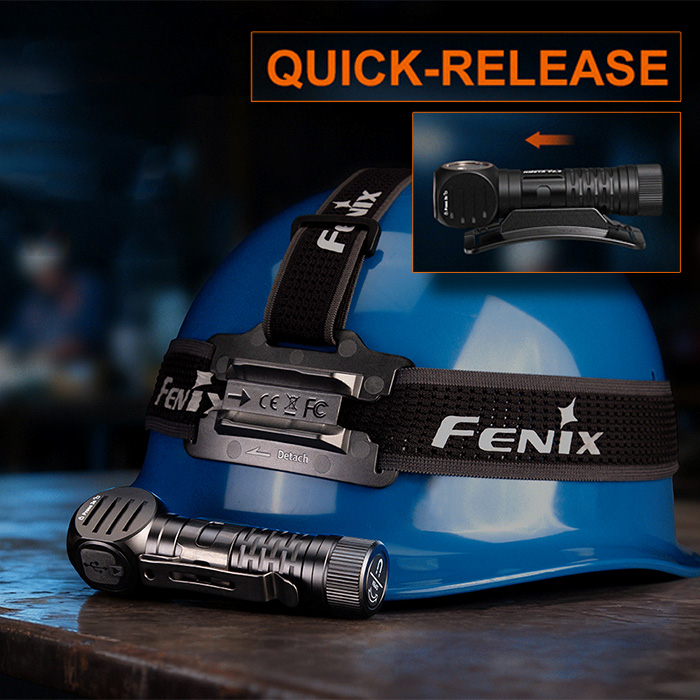

2-in-1 Quick-Release Design – Slides out of the headband to instantly convert from headlamp to handheld right-angle flashlight, no tools required.
Magnetic Tail Cap – Adds hands-free mounting versatility to metal surfaces.
Dual Side Switch with Battery Indicator – Independent controls for mode and brightness, with a built-in battery level indicator for at-a-glance charge status.
Rugged, Weather-Resistant Build – IP68 rated waterproof and dustproof, with impact resistance for dependable performance in harsh conditions.
Why You’ll Love It – Whether you’re trekking after dark, inspecting equipment on a job site, or need a light that adapts instantly from hands-free headlamp to handheld flashlight, the HM61R V3.0 delivers serious brightness and true versatility in one rugged package. Its dual-beam flexibility, quick-release design, and magnetic mounting options make it a dependable go-to light for work, patrol, and outdoor adventure alike.
Fenix HM61R V3.0 – powerful, adaptable illumination engineered to switch seamlessly between headlamp and handheld use.…..$89.95
- Output: 1800, 600, 150, 30 lumens spot; 200, 30, 5 lumens flood; 70, 15, 3 lumens red
- Battery Type: Fenix ARB-L18-4000 Li-ion rechargeable, included
- Run Time: 2.7 to 300 hours
- Beam Range: 639 feet (195 meters)
- Dimensions: 4.15″ x 1.50″ x 2.01″

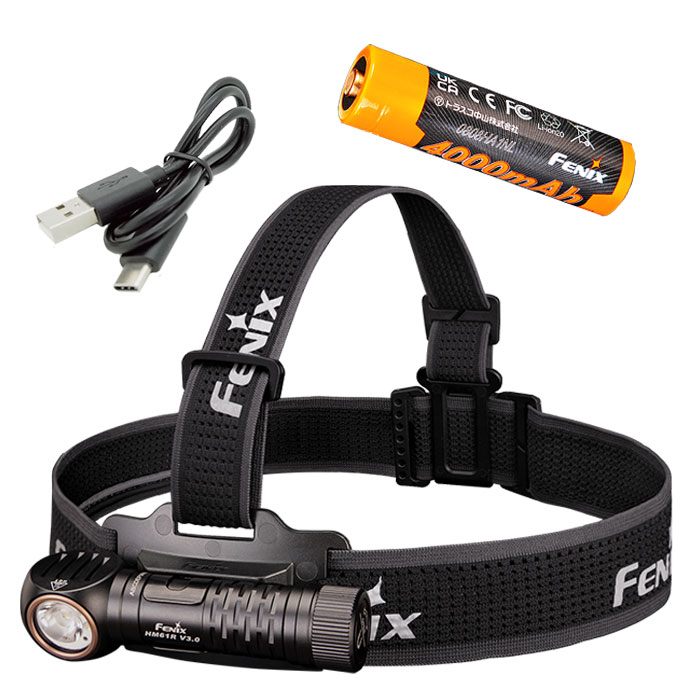

- What’s Included: Fenix HM61R V3.0 headlamp, rechargeable battery, USB-C to USB-A charging cable, pocket clip, spare O-ring
$89.95
Description
What’s included: Fenix HM61R V3.0 headlamp, rechargeable battery, USB-C to USB-A charging cable, pocket clip, spare O-ring
Features of Fenix HM61R V3.0 Rechargeable Headlamp and Right Angle Light:

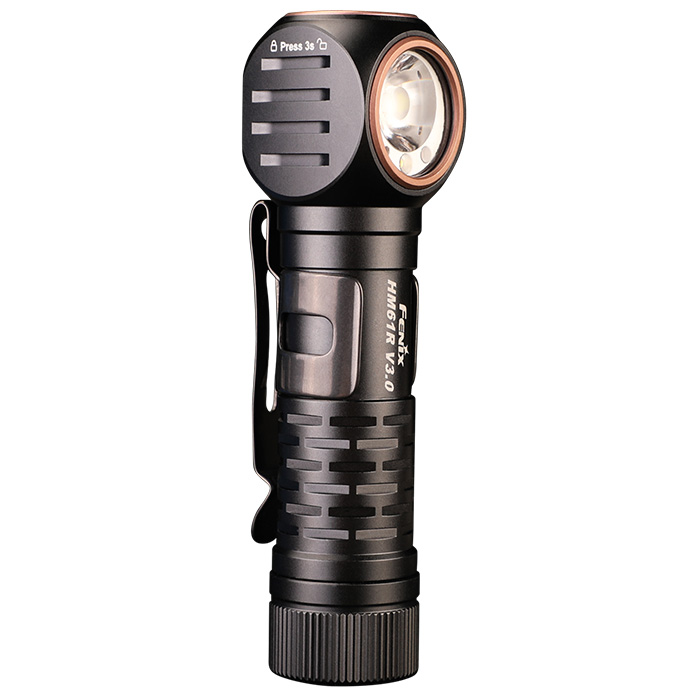

• USB-C rechargeable headlamp and compact right-angle flashlight in 1
â–¹ slide light from patented headlamp bracket for use as a flashlight
• white spot, white flood and red output modes
• durable A6061-T6 aluminum with Type HAIII hard anodized finish
• magnetic base
• waterproof to IP68 standard (not dive rated)
• maximum beam range of 639 feet (195 meters)
• brightness, runtime and beam range specs
☼ Spot Turbo – 1800 lumens, 9540 candela, 2.7 hours, 195 meters
☼ Spot High – 600 lumens, 2847 candela, 5.75 hours, 107 meters
☼ Spot Med – 150 lumens, 696 candela, 23 hours, 53 meters
☼ Spot Low – 30 lumens, 139 candela, 73 hours, 24 meters
☼ Flood High – 200 lumens, 273 candela, 2 hours, 33 meters
☼ Flood Med – 30 lumens, 25 candela, 57 hours, 10 meters
☼ Flood Low – 5 lumens, 6 candela, 300 hours, 5 meters
☼ Red High – 70 lumens, 12 hours, 17 meters
☼ Red Med – 15 lumens, 53 hours, 8 meters
☼ Red Low – 3 lumens, 222 hours, 4 meters
☼ Red Flash – 3 lumens
• powered by one Fenix ARB-L18-4000 rechargeable battery
â–¹ also compatible with Fenix ARB-L18-3400 rechargeable, ARB-L18-3500 rechargeable or two CR123A non-rechargeable batteries
â–¹ refer to manufacturer instructions for warnings regarding battery usage and compatibility

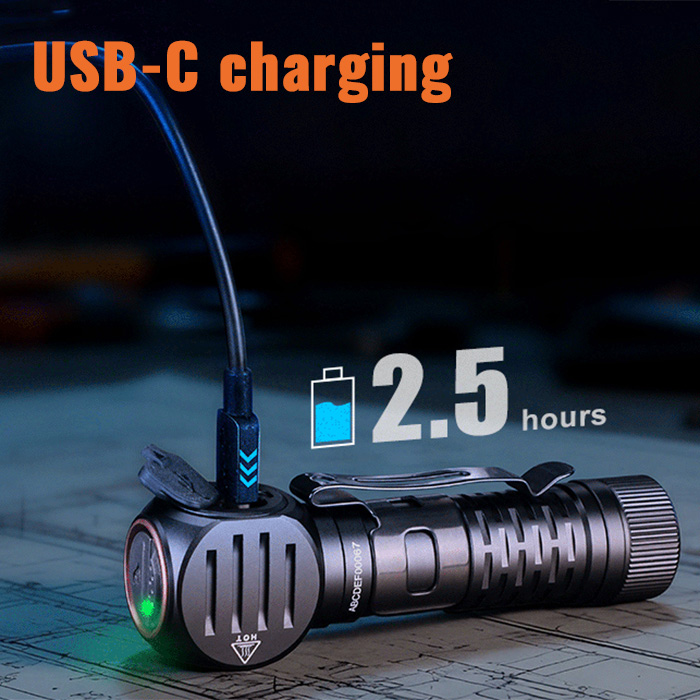

• USB-C charging
â–¹ attach included charging cable to headlamp for charging
â–¹ charging indicator changes from red to green when charging is complete
• battery level indicator glows for 3 seconds when light is activated

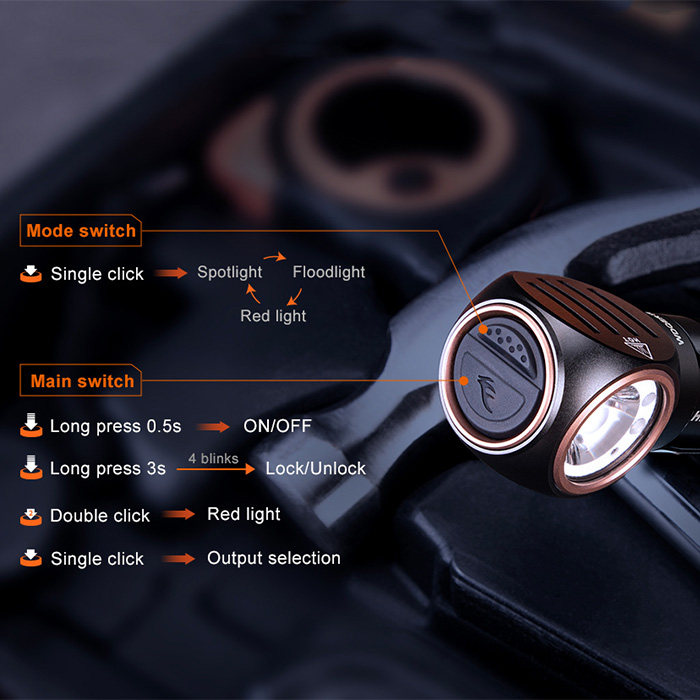

• pushbutton switch
â–¹ press and hold main switch for 0.5 seconds for on or off
â–¹ from on, press again to change brightness
â–¹ press raised portion of switch to select spot, flood or red
â–¹ always turns on in last white output level used
• direct to red
â–¹ from off, quickly double press main switch
• lockout mode prevents normal switch operation; useful for storage or transport
â–¹ from off, press and hold switch for 3 seconds
â–¹ repeat to unlock
• Intelligent Downshift when shining on a close object
â–¹ in spot mode, brightness downshifts to low when shining on an object 2.4″ away
â–¹ from off, press and hold mode switch for 6 seconds to activate; repeat to deactivate
• Intelligent Overheat Protection
▹ brightness automatically drops down a few lumens when internal temperature reaches 55°C
Specifications
| Battery#: | Fenix ARB-L18-4000 Li-ion rechargeable, 3.6V, 4000mAh, 14.4Wh; also compatible with Fenix ARB-L18-3400, ARB-L18-3500 or two CR123A non-rechargeable |
| Dimensions: | 4.15″ x 1.50″ x 2.01″ |
| Lamp Type: | Luminus SST40-GEN2 white LED, one OSRAM 1414 CRl90 white LED, and one OSRAM 1414 red LED |
| Light Output: | 1800, 600, 150, 30 lumens spot; 200, 30, 5 lumens flood; 70, 15, 3 lumens red |
| Weight w/batteries: | 5.91 ounces |
| Run Time: | 2.7 to 300 hours |
| Charging Time: | 2.5 to 4 hours |
| Focus Type: | Spot & Flood |
| On/Off: | Pushbutton |
| Material: | Anodized aluminum |
| Origin: | Made in China |
| Warranty: | Limited 5 year warranty through Fenix; limited 1 year battery warranty |
Product Video
Part Numbers and UPC Codes
P/N: HM61R V3; UPC: 6942870313832; HM61R V3 headlamp with USB-C charging, 1800 lumens
