Streamlight ProTac Rail Mount HPX Pro USB
Streamlight ProTac Rail Mount HPX Pro USB

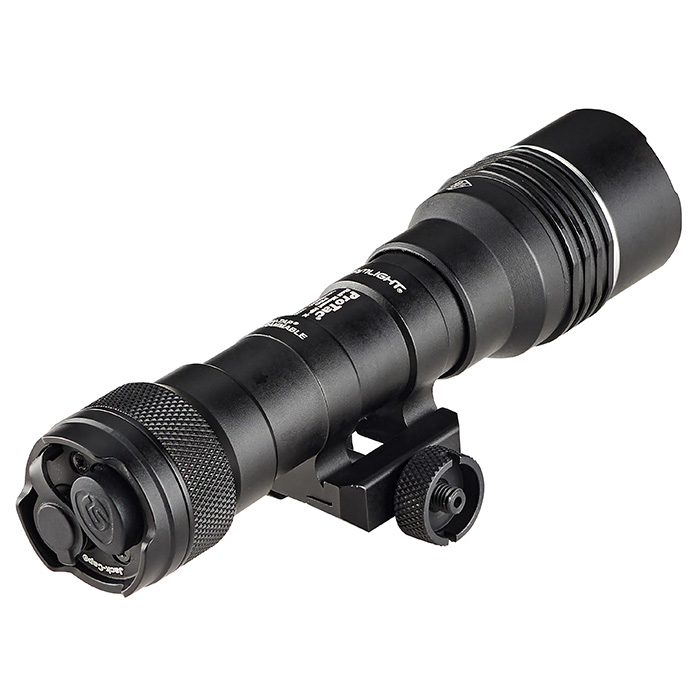

The Streamlight ProTac® Rail Mount HP-X Pro USB is a high-candela long gun light engineered for extreme beam reach, delivering 800 lumens and a blistering 105,000 candela that cuts through smoke, fog, and photonic barriers. Built for long guns, this rail-mounted light projects a beam out to 648 meters (2,125 feet), giving operators serious throw for long-range target identification.
The HP-X Pro USB runs on Streamlight’s SL-B26 protected Li-Ion USB-C rechargeable battery or two CR123A non-rechargeable batteries, giving you flexible power options in the field. Its Jack-Cap® tail cap switch delivers operational redundancy with both push-button and optional remote pressure switch operation, while the 6000-series machined aircraft aluminum housing with anodized finish and anti-reflective BOROFLOAT glass lens stand up to hard use and harsh conditions.
Key Features:
800 Lumens / 105,000 Candela on High – Delivers an extreme-reach, tightly focused beam with a maximum range of 648 meters when powered by the SL-B26 battery.
Multi-Fuel Flexibility – Compatible with the rechargeable SL-B26 USB-C battery or two CR123A non-rechargeable batteries, so you’re never limited to one power source.
TEN-TAP® Programming – Choose between High/Strobe, High Only, or Low/High operating modes to match mission needs.

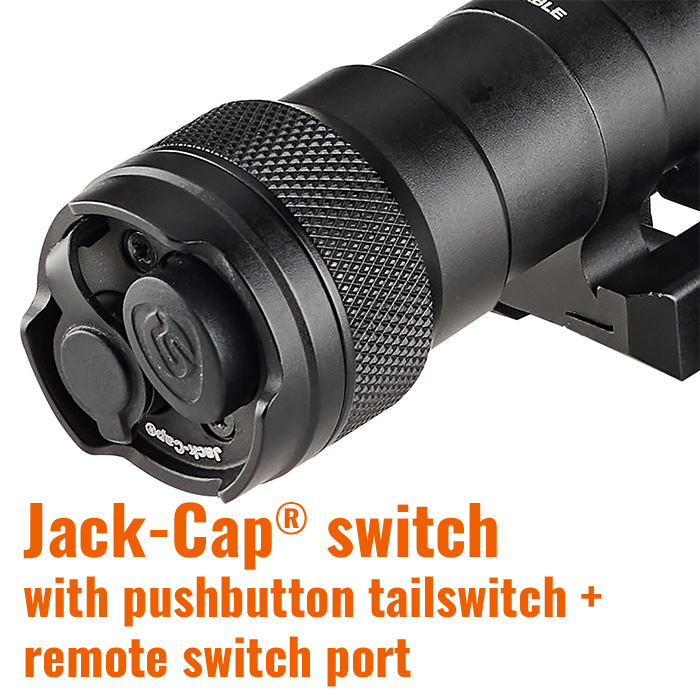

Jack-Cap® Tail Cap with Dual Activation – Offers push-button operation or optional remote pressure switch control for ultimate flexibility, with an integrated port that secures the remote switch.
Tool-Free Rail-Grip Clamp – Mounts directly to MIL-STD-1913 Picatinny rails or use included M-LOK mount for alternative mounting on M-LOK-compatible systems.
Rugged, Weather-Resistant Build – Rated IPX7 waterproof with the push-button switch (IPX4 with remote switch installed) and impact-resistant to 2 meters.
Why You’ll Love It – Whether you’re identifying targets at extreme distance, working through smoke and fog, or need a long gun light with serious reach, the ProTac Rail Mount HP-X Pro USB delivers extreme-candela performance without sacrificing rugged reliability. Its rechargeable convenience, multi-fuel flexibility, and dual-switch operation make it a light built for operators who demand maximum range and durability.
Streamlight ProTac® Rail Mount HP-X Pro USB – extreme-reach brightness and rugged dual-activation control, engineered for long-range precision. …..From $138.27
- Output: 800 lumens (105,000 candela) or 55 lumens (7,600 candela)
- Battery Type: Streamlight SL-B26 rechargeable (1); compatible with CR123A non-rechargeable (2)
- Run Time: 2 to 26 hours
- Beam Range: 2,125 feet (648 meters)
- Dimensions: 5.63″ long x 1.38″ bezel diameter x 1.72″ height
- What’s Included: Streamlight ProTac Rail Mount HP-X Pro USB, M-LOK mount, SL-B26 rechargeable battery, USB-C to USB-A charging cable; choice of with or without momentary pressure switch
- Notice: US SALES ONLY; this item cannot be exported
Price range: $138.27 through $161.32
Description
What’s included: Streamlight ProTac Rail Mount HP-X Pro USB, M-LOK mount, SL-B26 rechargeable battery, USB-C to USB-A charging cable; choice of with or without momentary pressure switch
Features of the Streamlight ProTac Rail Mount HP-X Pro USB:
• mounts directly to rifles, carbines, and submachine guns with a MIL-STD-1913 rail or with the included M-LOK® mount, allowing for alternative mounting options to M-LOK® and M-LOK® compatible rail systems
• 6000 series machined aircraft aluminum construction with type II Mil-Spec anodized finish
• Jack-Cap® pushbutton tail switch with remote pressure switch port
▹ available with or without momentary pressure switch
• glass lens with anti-reflective coating
• extensively live fire tested
• waterproof to IPX7 standard without remote switch; water resistant to IPX4 standard with remote switch installed
• maximum beam range of 2,125 feet (648 meters)
• brightness, runtime and beam range specs
☼ High – 800 lumens (105,000 candela), 2 hours, 648 meters
☼ Low – 55 lumens (7,600 candela), 11 hours, 174 meters
☼ Strobe – 3.5 hours

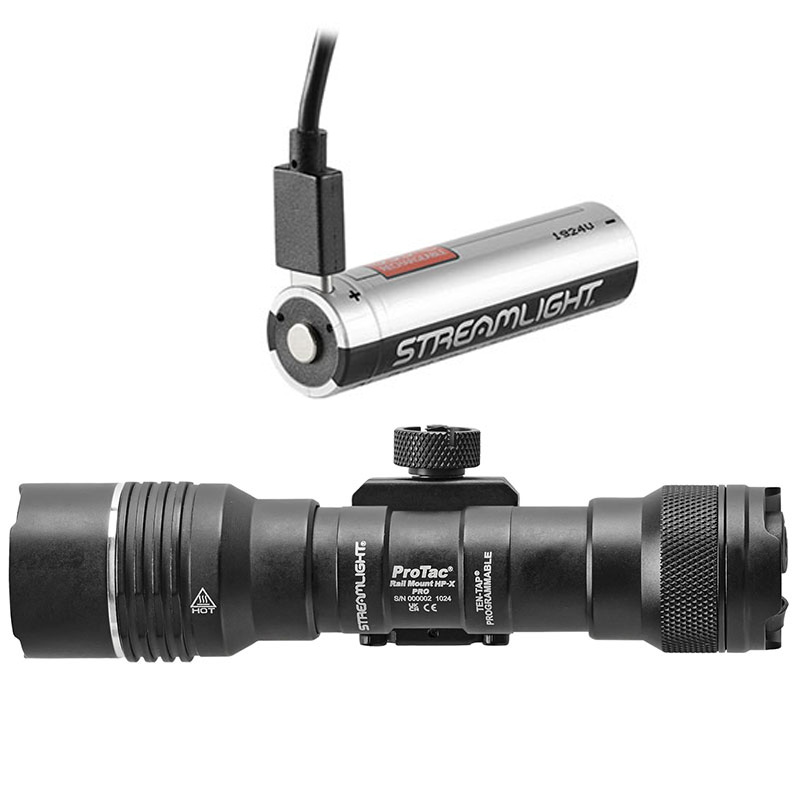

• powered by one Streamlight SL-B26 Li-ion rechargeable battery with integrated USB-C charge port
▹ attach included charging cable directly to battery for charging
▹ charging indicator on battery glows green when charging is complete
▹ compatible with two CR123A non-rechargeable batteries
▹ refer to manufacturer’s instructions for compatibility and warnings regarding battery usage
• TEN-TAP programmable tail switch; choose from three different programs
▹ 1. high > strobe (factory default)
▹ 2. high only
▹ 3. low > high
▹ (tap switch 9 times quickly and click on 10th press to advance to next program mode)
When you purchase Streamlight from BrightGuy.com, you’re buying from an authorized Streamlight dealer with a long track record of serving law enforcement agencies, fire departments, security companies, and professionals nationwide. That authorization matters: it means every light ships as a genuine Streamlight product backed by Streamlight’s Limited Lifetime Warranty. BrightGuy carries the complete Streamlight lineup.
Specifications
| Battery#: | Streamlight SL-B26 rechargeable battery with integrated USB-C charge port (1); compatible with CR123A non-rechargeable (2) |
| Dimensions: | 5.63″ long x 1.38″ bezel diameter x 1.72″ height |
| Lamp Type: | White LED with 50,000 lifetime |
| Light Output: | 800 lumens (105,000 candela) or 55 lumens (7,600 candela) |
| Weight w/batteries: | 7 ounces |
| Run Time: | 2 to 26 hours |
| Charging Time: | 5.25 hours |
| Focus Type: | Fixed |
| On/Off: | Pushbutton, Tail-Cap |
| Material: | Anodized aluminum |
| Origin: | Engineered in the USA, Made in China |
| Warranty: | Limited lifetime warranty through Streamlight |
Part Numbers and UPC Codes
P/N: 89016; UPC: 080926890169; 89016 ProTac Rail Mount HP-X Pro USB with Jackcap and remote momentary pressure switch
P/N: 89018; UPC: 080926890183; 89018 ProTac Rail Mount HP-X Pro USB with Jackcap, NO remote pressure switch
