Fenix HM75R Headlamp with Extended Runtime
Fenix HM75R Headlamp with Extended Runtime
Fenix HM75R is constructed of lightweight magnesium alloy and has spot, flood and red output modes. This headlamp is powered by a Fenix 18650 battery up front, plus it has the option of connecting the included 21700 battery pack for extra long runtimes. The HM75R headlamp is USB-C rechargeable……$169.95
- Output: using 18650 battery – 1600, 800, 350, 50 lumens spot; 1000, 400, 150, 5 lumens flood | using 18650 + 21700 – 1200, 800, 350, 50 lumens spot; 700, 400, 150, 5 lumens flood
- Battery Type: Fenix 18650 Li-ion rechargeable (1) and Fenix 21700 Li-ion rechargeable (1), included
- Run Time: 1.5 to 50.8 hours using 18650; 9 to 234 hours using 18650 + 21700
- Beam Range: 731 feet (223 meters)
- Dimensions: 3.6″ length x 1.75″ height x 1.5″ depth
- What’s Included: Fenix HM75R headlamp, Fenix 18650 battery, Fenix 21700 battery, USB-C extension cable, USB-C cable, spare O-ring
$169.95
Description

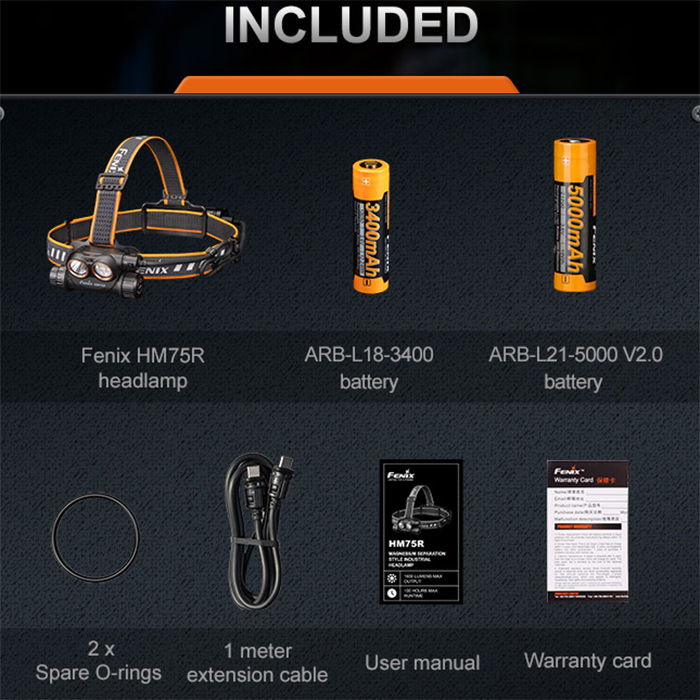

What’s included: Fenix HM75R headlamp, Fenix 18650 battery, Fenix 21700 battery, USB-C extension cable, USB-C cable, spare O-ring
Features of Fenix HM75R Rechargeable Headlamp:

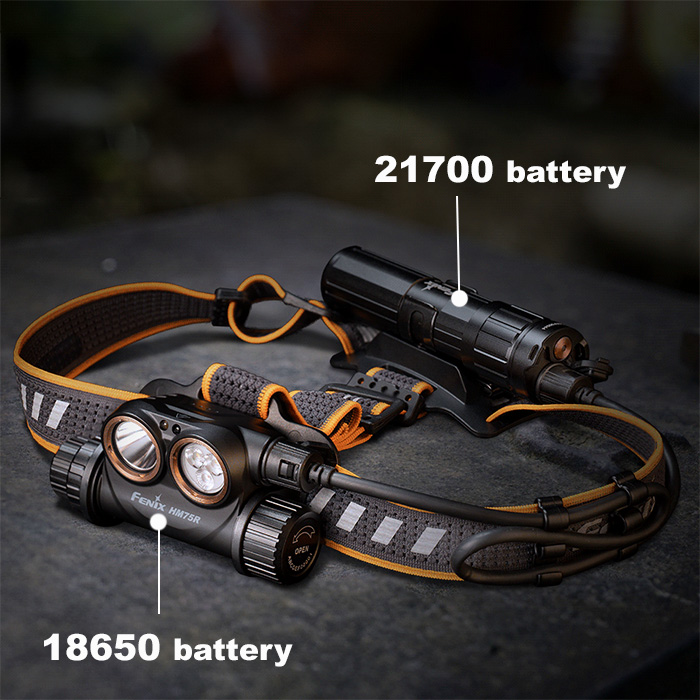

• powered by a Fenix 18650 rechargeable battery in front battery compartment
â–¹ attach and activate included Fenix 21700 rechargeable battery pack for extra long runtime in any mode (up to 10.5 hours in high spot, 800 lumens)

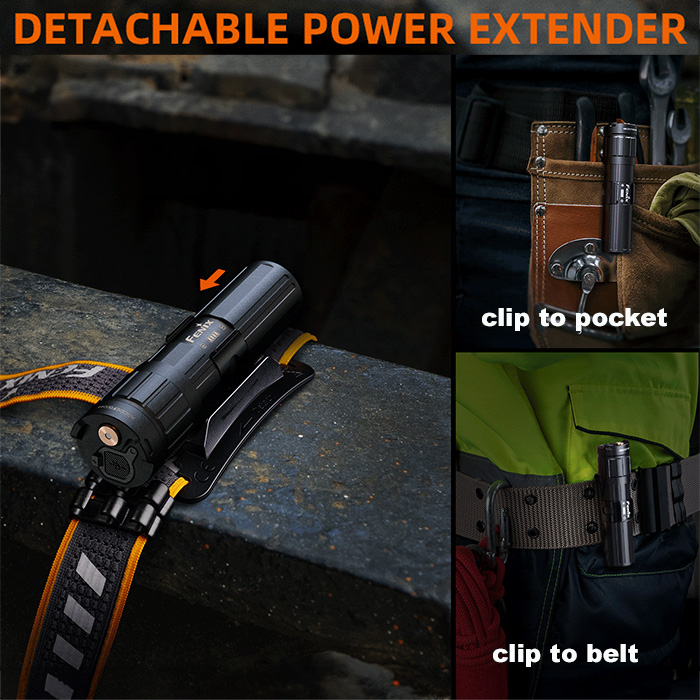

â–¹ 21700 battery pack attaches to back of head strap or can be clipped to a pocket or belt using included extension cable
â–¹ when attaching included cable to the headlamp or 21700 battery pack, push USB-C plug on completely, then twist to lock in place (unlock to remove)
â–¹ refer to manufacturer instructions for warnings regarding battery usage
• ultra lightweight magnesium body is lighter than aluminum
• brightness, runtime and beam range specs using 18650 battery
☼ Turbo spot – 1600 lumens, 1.5 hours, 223m
☼ High spot – 800 lumens, 3.5 hours, 158m
☼ Med spot – 350 lumens, 5.8 hours, 101m
☼ Low spot – 50 lumens, 50.8 hours, 39m
☼ Turbo flood – 1000 lumens, 1.8 hours, 60m
☼ High flood – 400 lumens, 4 hours, 43m
☼ Med flood- 150 lumens, 8 hours, 25m
☼ Low flood – 5 lumens, 100 hours, 5m
☼ High red – 120 lumens, 5.3 hours, 16m
☼ Med red – 30 lumens, 32 hours, 9m
☼ Low red – 5 lumens, 110 hours, 4m
☼ Flashing red – 5 lumens, 220 hours
• brightness, runtime and beam range specs using 18650 + 21700 battery
☼ Turbo spot – 1200 lumens, 9 hours, 223m
☼ High spot – 800 lumens, 10.5 hours, 158m
☼ Med spot – 350 lumens, 18.3 hours, 101m
☼ Low spot – 50 lumens, 88.6 hours, 39m
☼ Turbo flood – 700 lumens, 13 hours, 60m
☼ High flood – 400 lumens, 14 hours, 43m
☼ Med flood- 150 lumens, 18 hours, 25m
☼ Low flood – 5 lumens, 234 hours, 5m
☼ High red – 120 lumens, 19.6 hours, 16m
☼ Med red – 30 lumens, 46.3 hours, 9m
☼ Low red – 5 lumens, 265 hours, 4m
☼ Flashing red – 5 lumens, 530 hours
• maximum beam range of 731 feet (223 meters)
• waterproof (not dive rated)
• USB-C charging
â–¹ attach included USB-C to USB-C cable to headlamp or 21700 battery pack for charging
• battery status/charging status indicators on headlamp and 21700 battery pack
â–¹ indicators let you know when remaining power is low or when charging is complete
• twist rotary switch plus pushbutton switches
â–¹ twist for spot > flood > red modes
â–¹ from on, press headlamp switch to change brightness level
â–¹ to use both batteries for extended runtime, activate headlamp, then press switch on 21700 battery pack
• Intelligent brightness downshifting
â–¹ brightness automatically downshifts to low when shining on an object 2.36″ away for more than 1.5 seconds
• intelligent overheat protection
â–¹ output will drop down a few lumens to prevent overheating when internal temperature reaches 60 degrees C
Specifications
| Battery#: | Fenix 18650 3.6V, 3400mAh, 12.24 Wh (1) and Fenix 21700 3.6V, 5000mAh, 18Wh (1) |
| Dimensions: | 3.6″ length x 1.75″ height x 1.5″ depth |

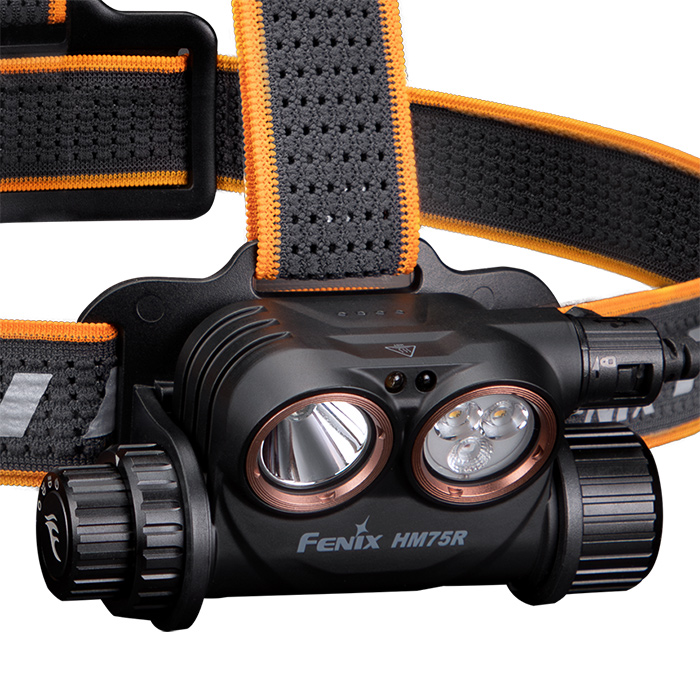

| Lamp Type: | Luminus SST40 cool white LED, two SST20 neutral white LEDs, Osram red LED |
| Light Output: | 1600, 800, 350 or 50 lumens spot; 1000, 400, 150 or 5 lumens flood using 18650 | 1200, 800, 350 or 50 lumens spot; 700, 400, 150 or 5 lumens flood using 18650 + 21700 |
| Weight w/batteries: | 6 ounces with 18650; 10.8 ounces with 18650 + 21700 |
| Run Time: | 1.5 to 50.8 hours using 18650; 9 to 234 hours using 18650 + 21700 |
| Charging Time: | 4 hours (18650 battery); 6-8 hours (21700 battery) |
| Focus Type: | Spot & Flood |
| On/Off: | Pushbutton + rotary |
| Material: | Magnesium |
| Origin: | Made in China |
| Warranty: | Limited 5 year warranty through Fenix |
Part Numbers and UPC Codes
P/N: HM75R; UPC: 6942870310671; HM75R Headlamp, 1600 lumens
